TNA-2051-G3

Today HH products focus on the future without ignoring their past and so are still designed and engineered in the UK. The current HH range offers excellence in performance and quality with oustanding value.
See the full HH product catalogue

TNA-2051-G3

£449.00

NOTE: Price is for 2 speakers

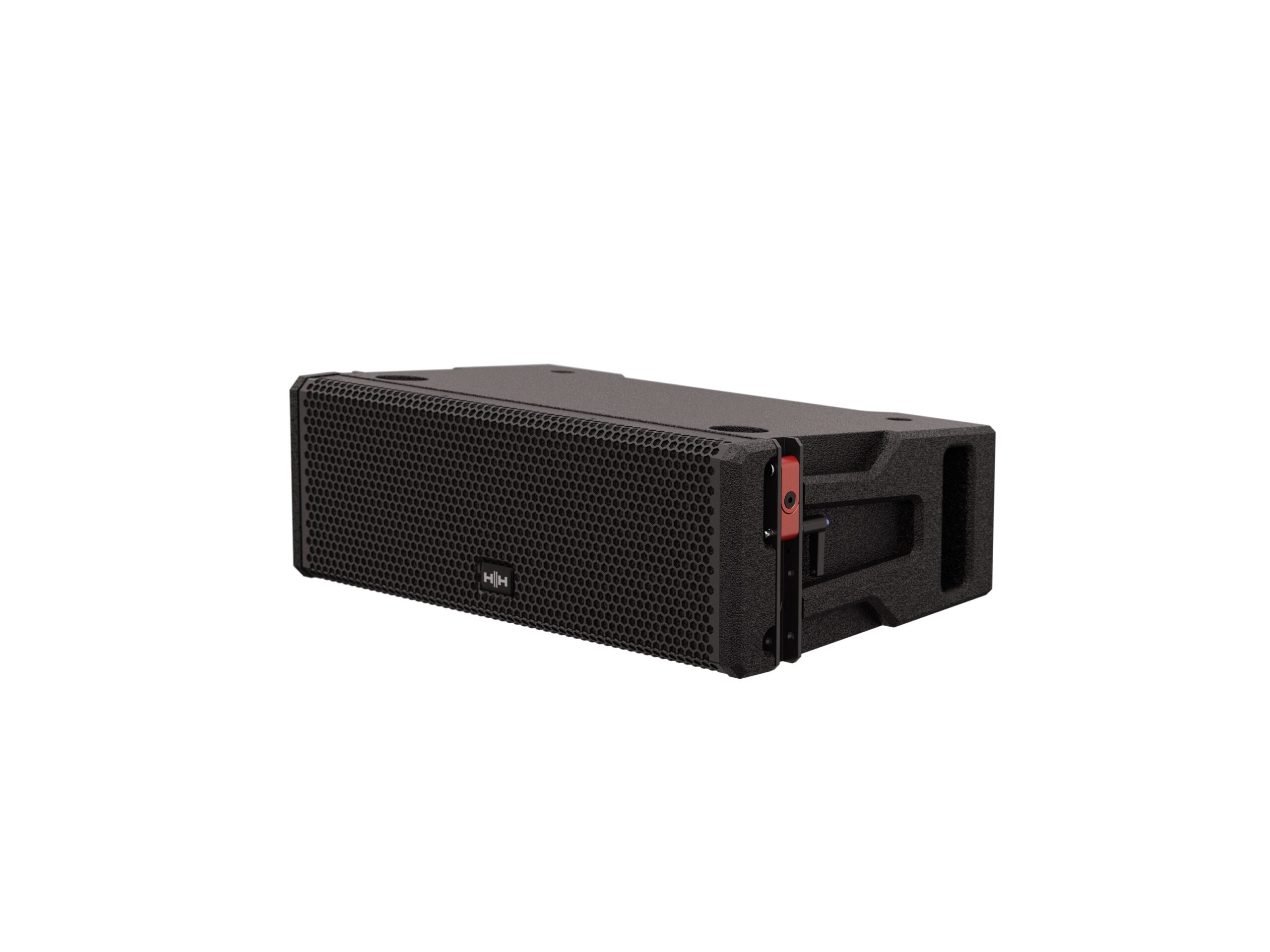

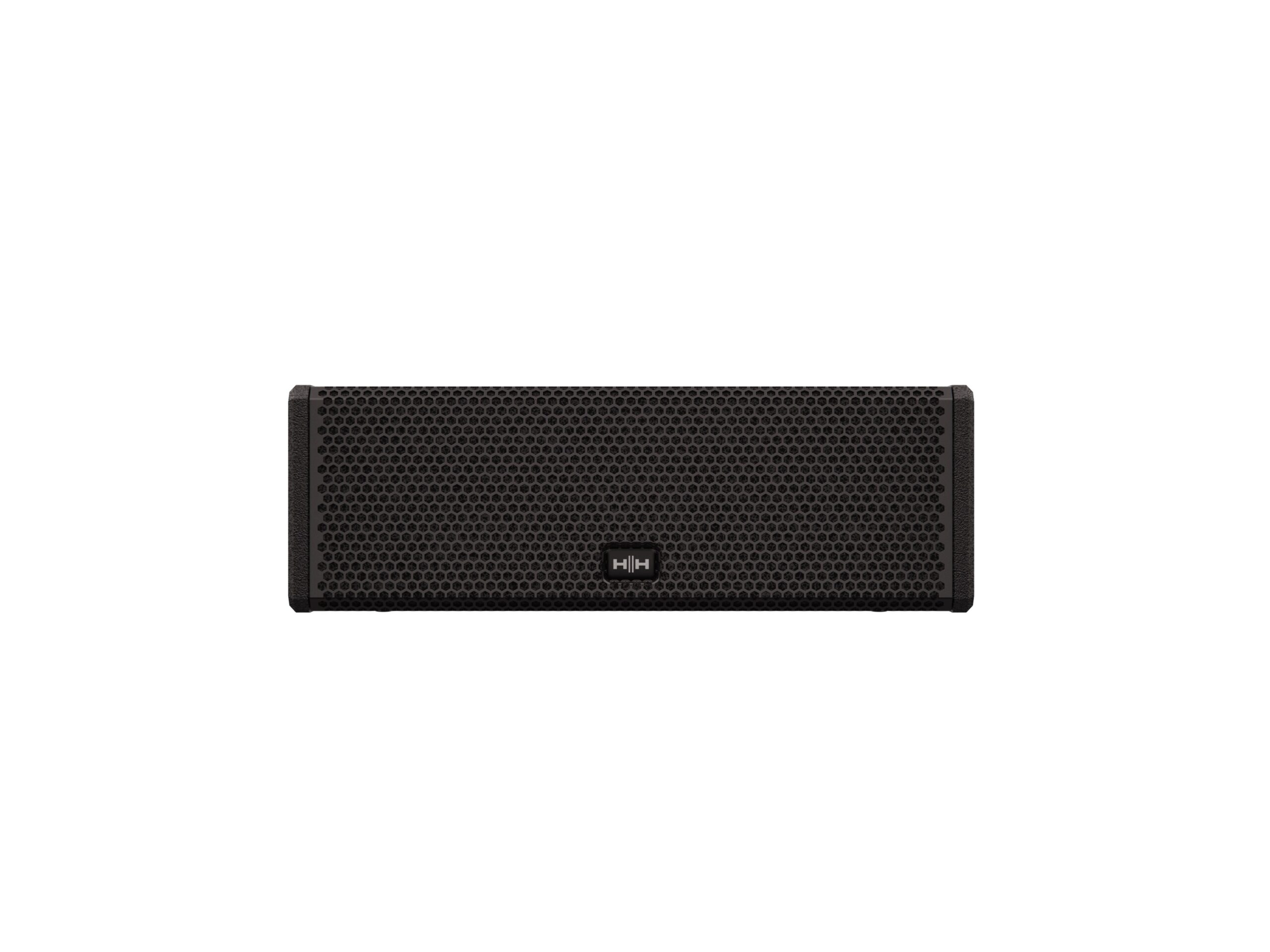

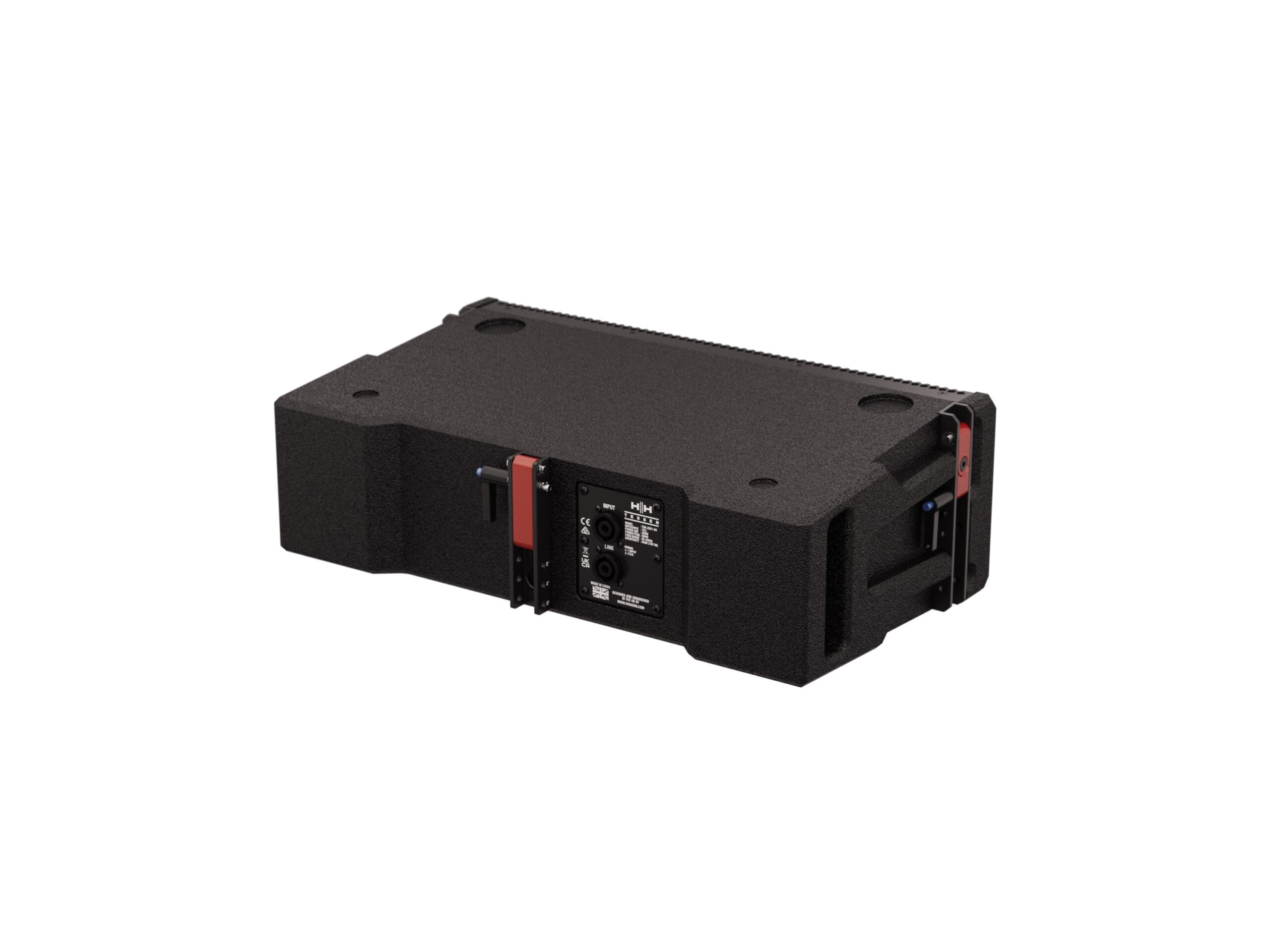

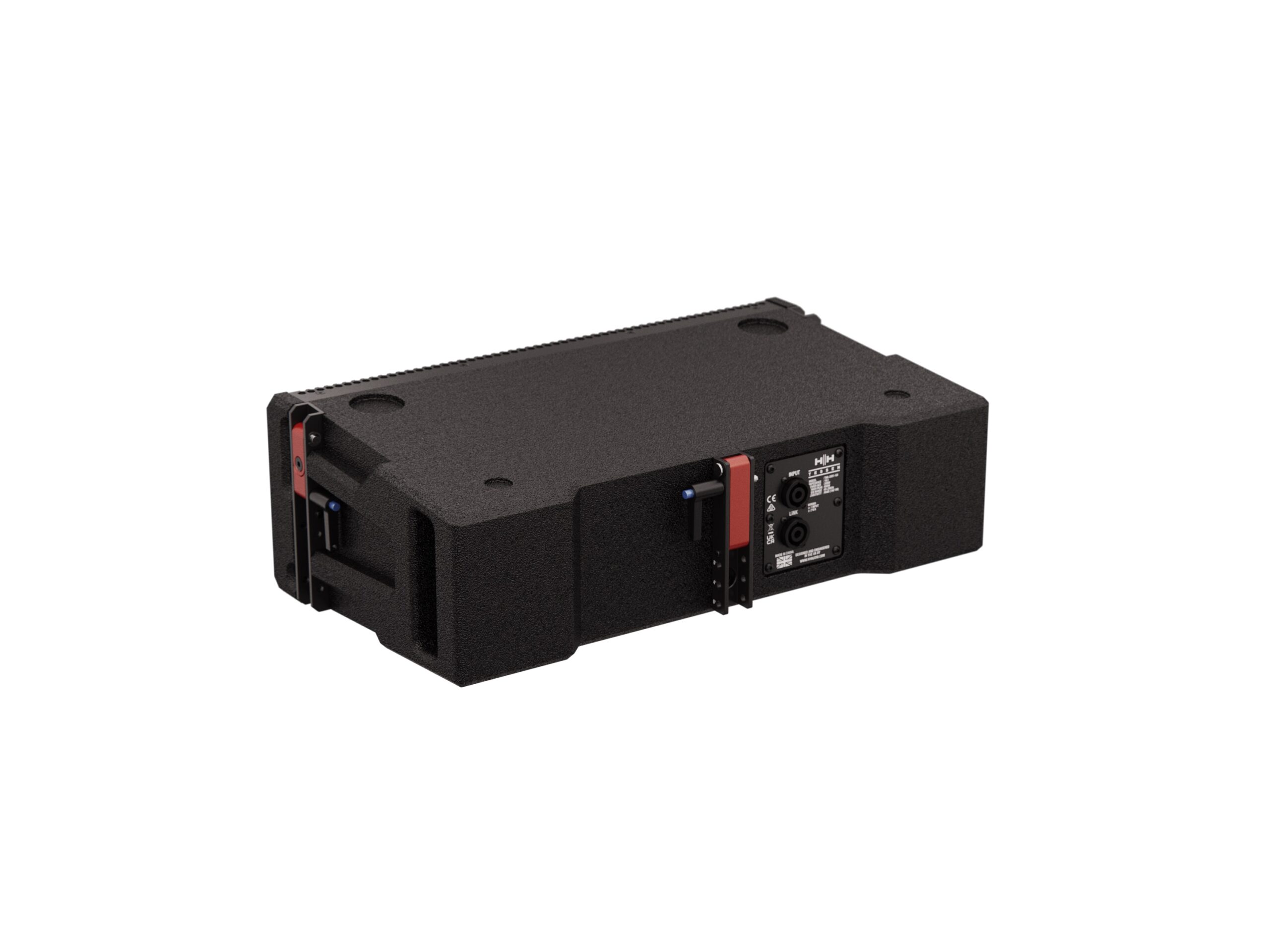

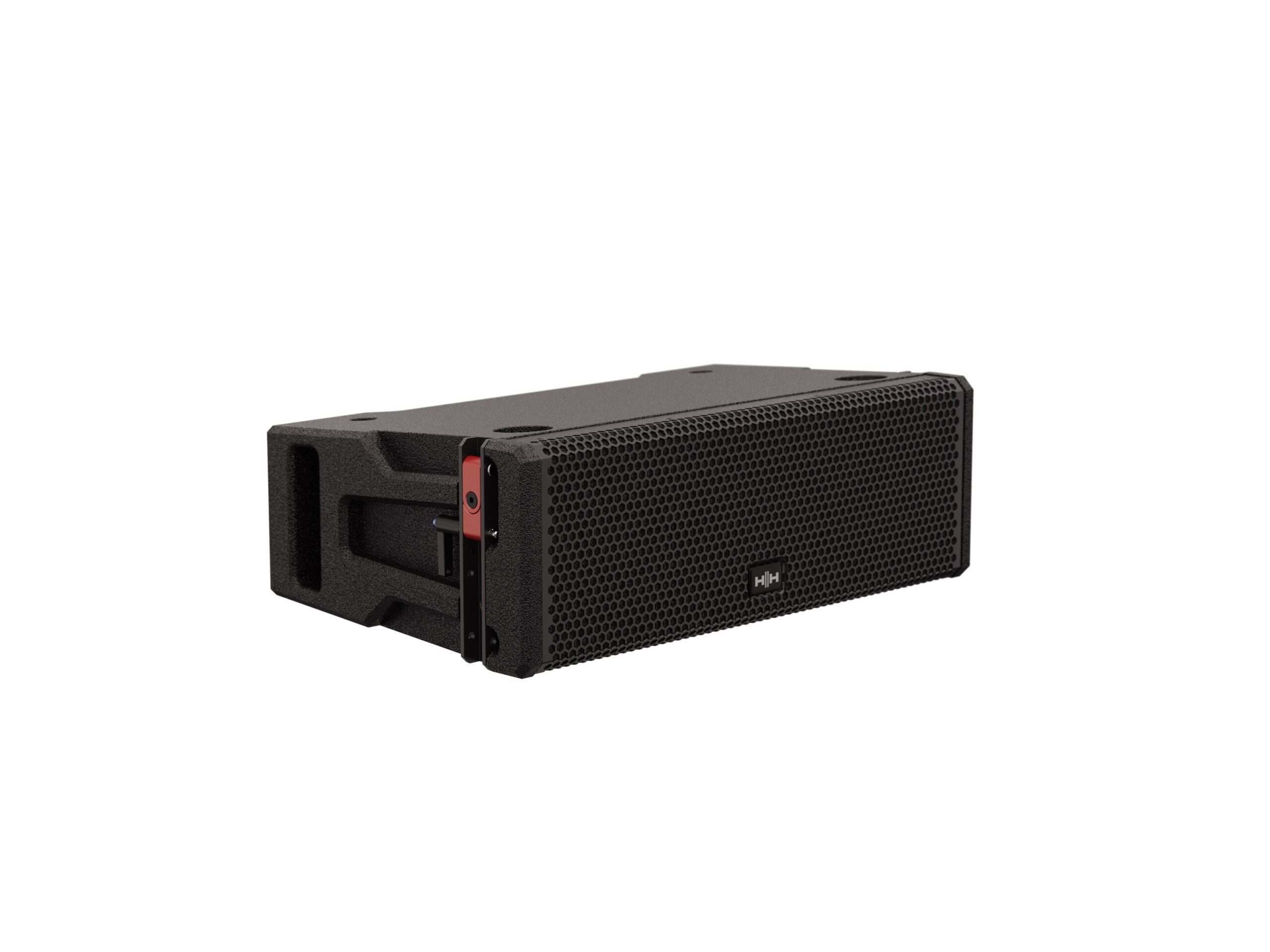

The TNA-2051-G3 is a passive line array loudspeaker comprising two 5-inch HH-designed LF drivers alongside a 1.33-inch Celestion CDX1-10WG compression driver, mounted to a Celestion designed waveguide and horn flare for optimal coverage control and clarity.

With a system power rating of 200W AES and a sensitivity of 94dB SPL (1W/1m), the TNA-2051-G3 delivers an impressive maximum SPL of 123 dB SPL (1m), ensuring precise and powerful audio throughout the carefully controlled coverage area.

Engineered for seamless integration, the TNA-2051-G3 pairs effortlessly with either the TNA-1200S-G3 passive subwoofer or the TNA-2120SA-G3 active subwoofer. The integrated 3-point pin-based rigging system simplifies set up and tear down time for TNA-G3, offering significant efficiency improvements over previous generations. Whether the system is flown or ground stacked, this mechanical upgrade minimises set-up time while expanding the range of use cases from fixed installations to small-to-medium scale touring applications.

This generation of TNA benefits from several key acoustic, mechanical, and aesthetic upgrades including:

  • Acoustic optimisation to improve overall system performance.
  • Simple setup and tear down via the integrated pin-based rigging system.
  • Enhanced durability with an upgraded hard-wearing black paint finish.
  • Improved aesthetic with an updated cabinet design.

TNA-G3 systems can be flown via the TNA-BRK1-G3 flying bracket and easily transported with the TNA-DF1-G3 dolly frame.

  • System Type
    2-way line array loudspeaker
  • Frequency Response (-10)
    65Hz – 20KHz (-10dB)
  • Frequency Response (-3)
    100Hz – 18KHz (-3dB)
  • Power
    200W AES, 800W Peak
  • Sensitivity (1W/1M)
    94 dB SPL
  • Max SPL
    123dB SPL
  • Nominal System Impedance
    16 ohms
  • Input Connector
    NL4 ±1 Twist Lock Connector.
  • Link Connector
    NL4 ±1 Twist Lock Connector.
  • HF Driver
    1 x 1.33-inch Celestion Compression Driver, mounted to Celestion Designed waveguide and horn.
  • LF Driver
    2 x 5-inch HH-designed driver.
  • Crossover Frequency
    2000Hz
  • Nominal Dispersion
    120° x 8° Single Box.
  • Recommended HPF Frequency
    100Hz
  • Cabinet
    15mm Plywood.
  • Finish
    Painted Black.
  • Mounting Bracket
    TNA-BRK1-G3 for suspended mounting.
  • Mounting Points
    6 x M8 mounting points for integrated rigging system.
  • Linking Bracket
    3-point rigging system w/removable locking pin for linking and adjusting splay angle.
  • Splay Angle Settings
    0°, 4° and 8° (between enclosures).
  • Grille
    1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined.
  • Unit Dimensions (Hwd)
    163 x 496 x 288mm
SKU: TNA-2051 Category:
