Q12FX

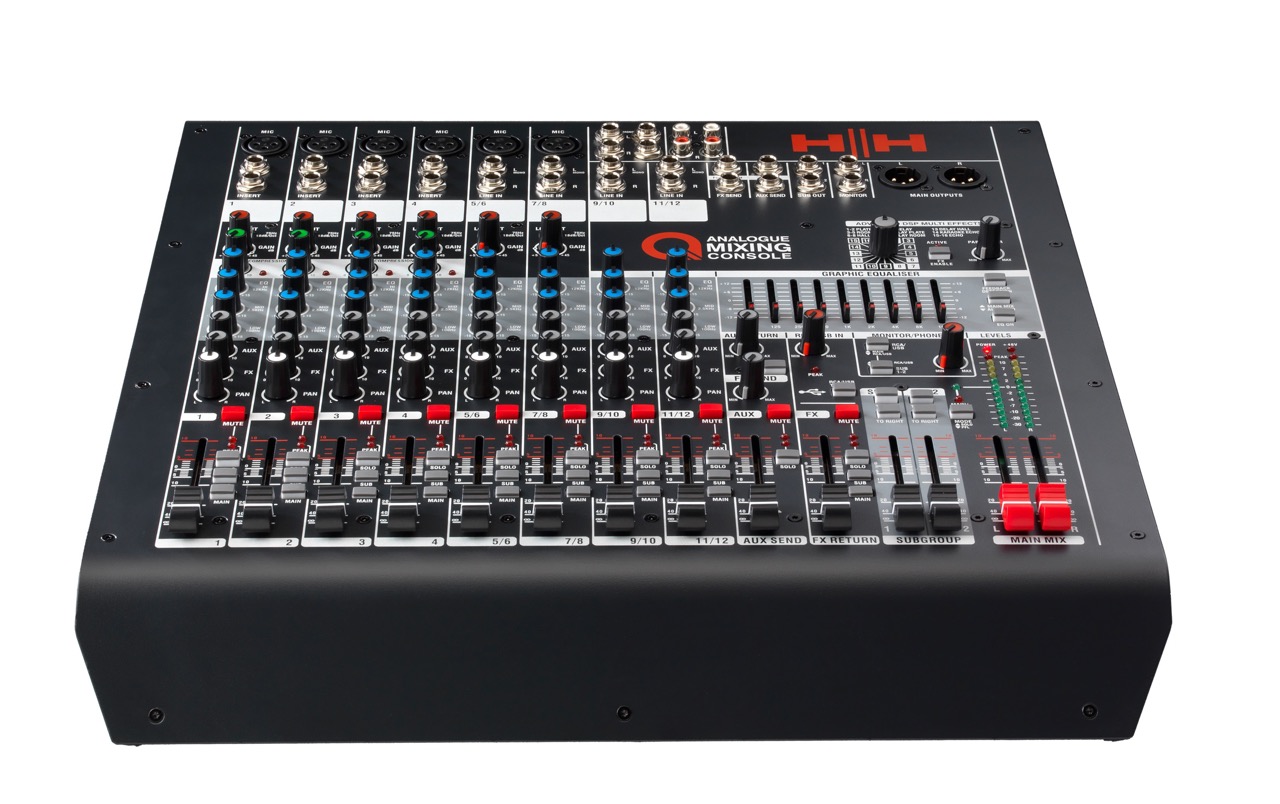

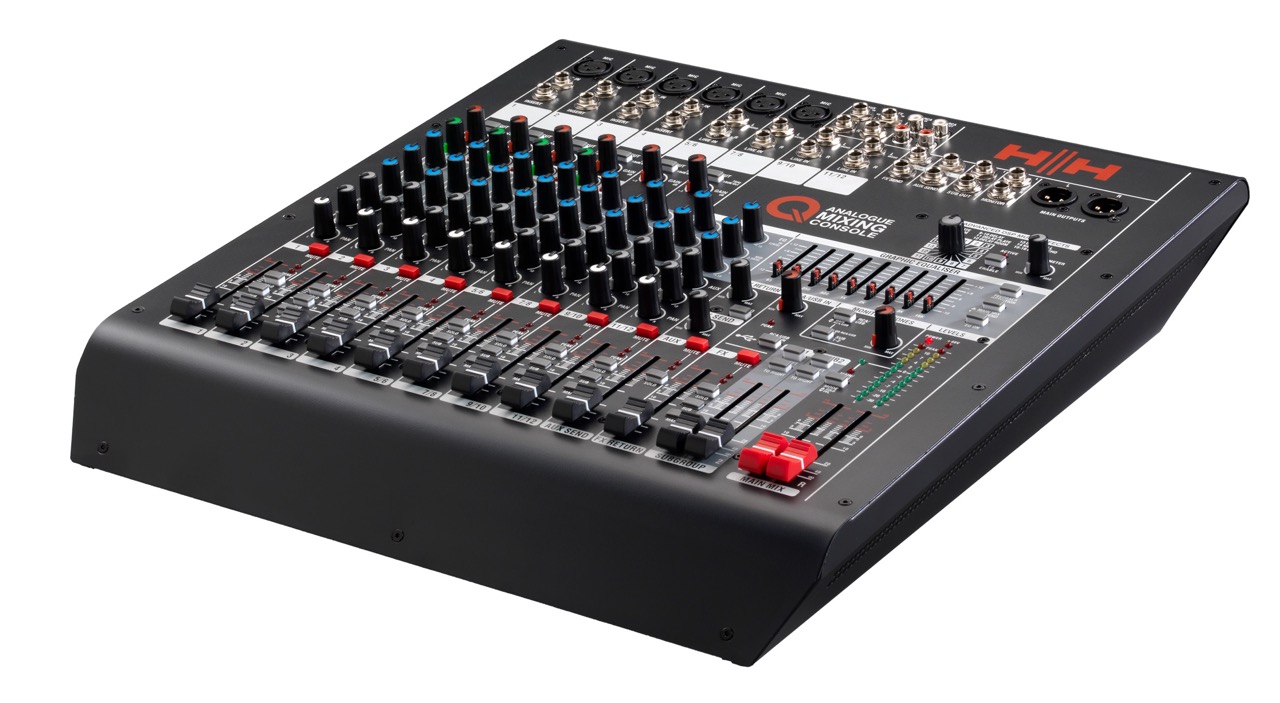

The Q12FX is a 12-channel analogue mixing console designed and engineered in the UK. The Q12FX consists of 12 input channels: 6 mono channels with microphone inputs utilising low-noise microphone preamps plus a line-in option on each channel alongside 4 stereo line input channels perfect for electric pianos, synthesizers, drum machines, audio from external media players or any other line level sources.

Channels 1 to 4 feature an easy-to-use single-knob compressor giving you full control over the dynamic range of your input sources. A low cut at 75Hz plus a 3-band EQ is available on each channel allowing you to shape the tone of individual sound sources helping you to create a beautifully balanced mix.

16-high-quality DSP effects offer even more options for your audio productions with multiple reverbs, delays and echoes to choose from. The 9-band graphic EQ with feedback detection allows you to grasp the sound of your mix as a whole and adjust accordingly before sending it to front of house.

The Q12FX also offers 2 Subgroups to give you further control, allowing you to adjust the level of the channels routed to each group with ease. 2in/2out USB functionality makes the Q12FX the perfect tool for recording performances, podcasts, and music production.

All of this combined with comprehensive monitoring, 2 auxiliary sends, RCA in and out, global phantom power, pan on each channel, and a 12-point LED meter for your main mix all housed in a robust chassis make the Q12FX a complete portable powerhouse for traveling musicians and engineers alike.

Features

• Mic Inputs – 6x XLR CH1-8
• Line Inputs (Mono) – 4 x ¼” 6.3mm TRS CH1-4
• Line Inputs with Mic (Stereo) – 2 x Stereo ¼” 6.3mm TRS CH5-8
• Line Inputs (Stereo) – 2 x Stereo ¼” 6.3mm TRS CH9-12
• EQ – 3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel
• Low Cut – 75Hz cut off @ 18dB/Octave (CH1-8)
• Compressor – 2:1 Ratio, 9dB Makeup Gain, -8dBu input threshold (max compression, CH1-4)
• Main Outputs – Balanced Stereo XLR
• Monitors – Stereo ¼” 6.3mm TRS Sockets
• Sub Outputs – 2 x ¼” 6.3mm TRS Sockets
• FX Send – Mono 1/3” 6.3mm TRS
• Aux Send – Mono ¼” 6.3mm TRS
• Phones – Mono 1/4” 6.3mm TRS
• RCA – Stereo Phono Sockets
• Effects – 16 Reverb and Delay effects with enable switch and parameter control
• Graphic EQ – Master 9 Band Graphic EQ with feedback detect, on/off toggle
• USB Audio – Inputs/Outputs: 2-in, 2-out, 16-bit, 24-bit, Sample Rate: 48kHz
• AC Power – Universal 100-240V ~ 50/60Hz (EIC C14 Socket, AC Cord included)

Datasheet

Q12FX Datasheet

For more product info see the full spec and downloads
